Blade Pro

Redefine your outdoors.

Design and buy yours now

From $9,880 or $891.39/mo. for 12 mo.

Ideas to Inspire

Blade Pro

Buy

Engineered for Strength and Longevity

Crafted from heavy-gauge aluminum, this robust louvered pergola is powder-coated for exceptional durability and lasting protection. Featuring operable, double-walled aluminum louver blades, this heavy-duty structure provides enhanced insulation and lasting durability.

Effortless Control and
Reliable Performance

The louvers are powered by a reliable tubular motor, unlike standard piston-arm motors used in most pergolas, which often require additional receivers for remote control and are prone to malfunction.

Built to Weather It All

Designed for all-weather resilience, this pergola features watertight gaskets for rain protection, reinforced strength to handle heavy snow, and stability in strong winds. It offers reliable durability for any environment.

Double-insulated aluminum blades block sun heat , providing cool, comfortable shade in sunny days.

Watertight design with gaskets on each louver blade and around the gutter beams for total rain protection.

Engineered to withstand up to 45 lbs/sf , providing exceptional durability under heavy snow loads.

Built to endure wind speeds up to 130 mph , ensuring stability in the harshest conditions.

Engineered to perform in sun, rain, snow, and wind—Blade Pro stands strong in every season.

Seamless Rainwater Management

The louver blades have pockets to capture rainwater, channeling it into side beams with integrated gutters, while the columns serve as discreet downspouts for efficient drainage.

Ambient Perimeter Lighting

Optional perimeter LED lighting offers a choice of crisp white or customizable RGB colors, adding dynamic ambiance to your outdoor space.

Versatile Enclosure Options

Slide

The Slide, sliding glass door system, features double-glazed, insulated tempered glass set within a robust aluminum frame, providing both durability and energy efficiency. With a handle and locking latch for security, Slide doors can be configured to open in either direction, offering flexible access and a sleek, enclosed finish.

Shade

The Shade motorized screen system features premium composite vinyl fabric, combining reliable protection against bugs, enhanced privacy, and ample shade. Soltis 86 fabric by Serge Ferrari allows 28% light transmission for clear outdoor visibility, blocks up to 93% of outdoor heat , and promotes natural light intake, reducing the need for artificial lighting. Water-repellent and durable, it shields against rain and withstands winds up to 30 mph , ensuring comfort and functionality in any setting.

Seamless Integration  for Accessories

Integrated compartments within the gutter beam provide a concealed pathway for wiring, making it easy to connect additional devices like fans, heaters, and speakers.

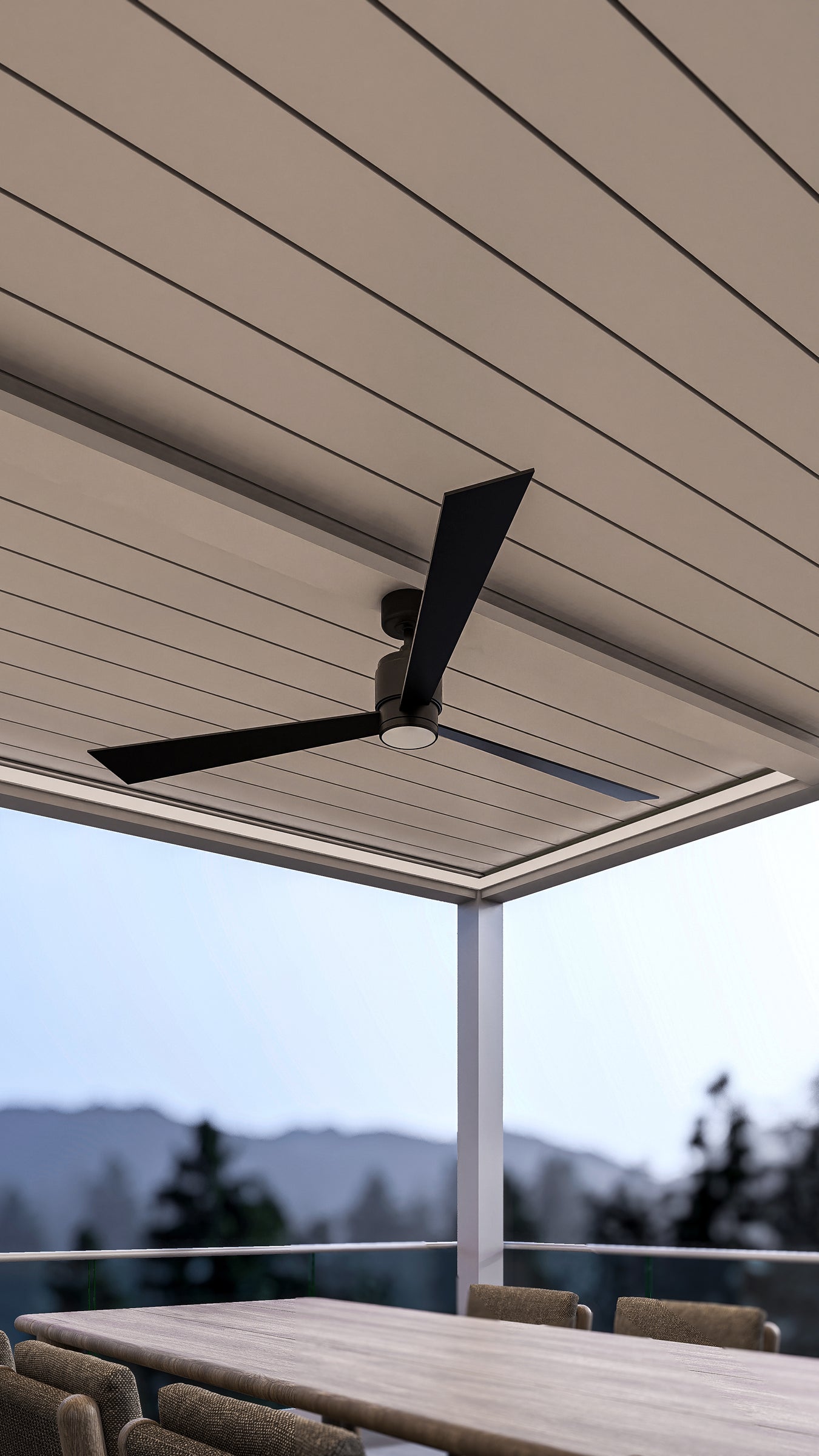

Ceiling Fan. An optional aluminum tube can be added to the structure, providing a sturdy base for attaching a ceiling fan.

Heater. Infrared heat lamps can be mounted for warmth during colder weather, requiring an electrician to install appropriate wiring for safe operation.

Speakers. Can be added to create a dynamic sound experience, enhancing the ambiance and enjoyment of your outdoor space.

TV. Enjoy your favorite shows or games with a TV mounted to optional cross-aluminum tubes, seamlessly secured to the columns.

Projector. Transform your outdoor space into a cinema with the Shade system, perfect for a movie or game night under the stars.

Design Your Perfect Outdoor Space

Customize every detail of your Blade Pro with our advanced configurator. Choose colors, sizes, side systems, and accessories, then interact with features like zoom, day and night modes, and adjustable lighting. Drop your design into different environments to see your vision come to life.

Experience Blade Pro in Your Space

Bring your design to life with our AR view feature. After configuring your Blade Pro, click the AR button to place it in your desired location and experience it to the scale. Walk under the pergola, look around, and gaze up through the louver blades for a realistic and immersive experience.

See the Blade Pro Difference

	Pergolade Blade Pro	Renson Camargue	Struxure Pivot 6 XL	Pergolux Skydance S2
Material quality
Structure material	3 mm Extruded A6063-T6 Aluminum	3 mm Extruded A6063-T6 Aluminum	3 mm Extruded 6063-T6 Aluminum	2 mm Extruded 6063-T5 Aluminum
Finish	Powder-coated	Powder-coated	Powder-coated	Powder-coated
STRUCTURE DESIGN
Louver blade	Double-walled; S top, flat bottom	Partially double-walled; Flat bottom	Single-sheet; S top, S bottom curved	Partially double-walled; Flat bottom
Beam	Double-walled, L shaped, integrated gutter channel	Double-walled, integrated gutter channel	Rectangular tubes, fastened gutter channel	Tube like double-walled fastened gutter channel
Column	Double-walled on two sides, square tube	Gridded interior compartments, square tube	Single walled, rectangular tube	Gridded interior compartments, square tube
Maximum size	14' x 20'	14' - 9" x 20' - 4"	12' x 20'	13' x 19'
Height to the top	9' - 10"	9' to 10'	9' to 10'	8' - 8"
Column size	7" x 7"	6" x 6"	6" x 6" (8" x 8" option available)	6" x 6"
Weight	4.1 psf (based on 14' x 20')	4 to 5 psf (based on 14' - 9" x 19' - 10")	Not available	2.83 psf (based on 13' x 19')
Weather resistance
Wind load capacity	Up to 130 mph	Up to 125 mph	Not provided, must leave louvers open	Up to 65 mph
Snow load capacity	Up to 55 psf (based on 14' x 20')	Up to 41 psf	Not provided, must leave louvers open	25 psf (based on 13' x 19')
Integrated gutters	Yes Part of beam extrusion	Yes Part of beam extrusion	Yes Fastened to beam	Yes Fastened to beam
Watertight	High Gaskets on louvers and beams	Medium Gaskets on louvers only	Low No gaskets	Medium Gaskets on louvers only
Airtight	High Gaskets on louvers and beams	Medium Gaskets on louvers only	Low No gaskets	Medium Gaskets on louvers only
Louver blades
Design/strength	Double-walled 3 mm thick	Double-walled 3 mm thick	Single sheet- curved 3 mm thick	Partially double-walled 2 mm thick
Adjustability	Operable up to 110°	Operable up to 150°	Operableup to 145° or 170°	Operable up to 130°
PU foam	Available for custom orders	Unknown	Not available	Not available
Motor operation
Motor type	Tubular motor 110V or 220V	Linear (piston arm) motor	Linear (piston arm) motor 24 VDC	Linear (piston arm) motor
Reliability	High	Medium	Medium	Medium
Control options	Remote control Smart home	Remote control Smart home	Remote control Smart home	Remote control Smart home
Lighting options
Integrated lighting	Perimeter LED	Perimeter LED or spot	Perimeter LED or spot	Perimeter or louver embedded LED
Customizablity	White or RGB colors Dimmable	White or RGB colors Dimmable	White or RGB colors Dimmable	White or RGB colors Dimmable
Enclosing options
Sliding glass door	Available 6 mm +AS+ 6 mm double pane, Tempered, insulated	Available 10 mm single pane, Tempered, non-insulated	Not available	Available 8 mm or 10 mm single pane, Tempered, non-insulated
Screen/shade	Available Serge Ferrari Soltis 86	Available Various fabrics	Not available directly Some dealers may offer	Available Fabric info not available
Accessories
Fan	Fan beam available Fan not offered	Fan beam available Fan not offered	Fan beam available Fan not offered	Not offered
Heater	Compatible Offered	Compatible Not offered	Compatible Not offered	Compatible Offered
Sensors	Available Wind and rain	Available Wind and rain	Available Wind and rain	Not offered
Installation & maintenance
Ease of installation	6 to 8 hours 2 or 3 person team	6 to 8 hours 2 or 3 person team	8 hours 3 person team	4 to 6 hours 2 or 3 person team
Installers	DIY 3rd party offered Local partner/dealer	No DIY Certified 3rd party Local partner/dealer	No DIY Local partner/dealer	DIY 3rd party offered
Maintenance	Low Clear gutters; Annual part & electronics check	Low Clear gutters; Annual part & electronics check	Low Clear gutters; Annual part & electronics check	None Not suggested
Warranty & customer support
Warranty	Structure 10 yrs, Motor, operable parts 5 yrs, Electronics 2 yrs, Lights 1 yr	Structure 10 yrs, Motor, operable parts 5 yrs, Electronics & accessories 2 yrs	Structure 10 yrs, Motor, operable parts 5 yrs	Structure 10 yrs, Operable parts 5 yrs, Electronics & accessories 2 yrs
Support	Phone, chat, email	Contact dealer	Contact dealer	Phone, chat, email
Company
Origin	United States	Belgium	United States	Norway
Headquartered	New Jersey, USA	Texas, USA	Georgia, USA	Connecticut, USA
Manufacturing	Europe U.S. Assembly & Warehousing	Europe U.S. Assembly & Warehousing	China U.S. Assembly & Warehousing	China U.S. Warehousing
Online ordering	Yes	No	No	Yes
Custom order	Available Local partner/dealer	Available Local partner/dealer	Available Local partner/dealer	Not offered

Easy-to-Follow Installation Support

The Pergolade Blade Pro is designed for efficient installation, taking just 4-6 hours with a small team of 2-3 people. Predefined slots for securing louvers simplify the process, ensuring a straightforward setup without extensive preparation.

Get the complete installation support

View our guide and check the interactive 3D instructions for a seamless installation

Download the PDF guide Download Pergolade App

Step-by-step video, ensuring a smooth and easy setup process

Watch Video Instructions

Your Vision. Our Expertise.

Whether you’re designing, building, or specifying, Pergolade is here to bring your ideas to life. From innovative louvered pergolas to fully integrated outdoor solutions, we partner with you to create exceptional spaces. Let’s collaborate on your next project.

Operable louvers. Double-walled aluminum slats with rubber gasket provide insulation, durability, and precise control over shade and airflow.
Integrated gutter beam. Hidden gutters within the side beams channel rainwater efficiently to the columns.
Multifunctional columns. Extruded aluminum columns provide structural strength and serve as discreet downspouts for drainage.
Customizable lighting. Perimeter LED lights in white or RGB enhance ambiance and functionality.
Smart motor operation. Reliable tubular motor ensures smooth louver adjustment, compatible with smart home integration.
